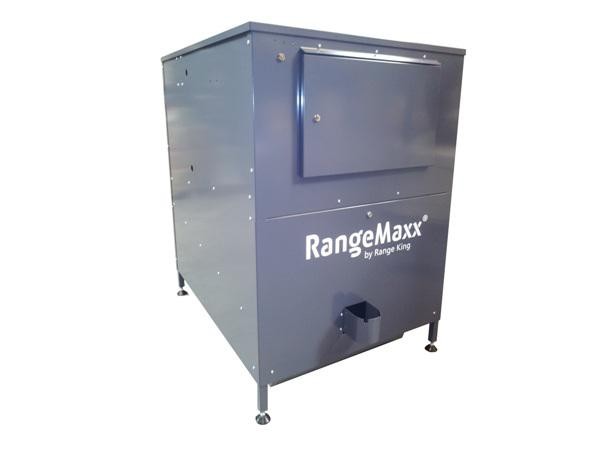

Range King Dispensers – Flat top

Range King golf ball dispensers are all equipped with the unique, reliable, and sturdy dispensing mechanism, developed by Range King. The mechanism is quick and accurate: it dispenses in only one single movement an exact even quantity between 12 and 24 balls. This action takes less than 3 seconds!

– Dispensing of the balls with two unique Range King dispensing mechanisms
– Large storage capacity compared to compact dimensions
– Integrated light-duty washing installations
– Flat lid with hydraulic springs for manual filling either at the front or the backside
– Counters included
– Solid steel exterior, galvanized and powder coated
– Stainless steel lock cams prevent burglary
– Adjustable set feet
– Holes on every side indicate the level of balls
– Large front doors enable integration of many different payment systems (order separately)

Technical details:
– dispensing cycle:  2-3 seconds
-dispensing quantities per cycle: 1 row: 6,7,8,9,10, 11 or 12 balls 2 rows
(standard): 12,14,16,18,20,22 or 24 balls
– adjustable quantity of 1-4 cycles per payment
-power: 230 VAC/ power consumption: 5-200 W
-water inlet: 1/2″ (garden hose dimension)
-water drain: 40 mm

– standard color: RAL7015 grey
– other colors optionally possible

Dispenser Range King
Medium (9000 balls)
=> weight empty approx 240 kg, full approx 700 kg
=> outer dimensions 92 x 124 x 135 cm (w x d x h)

Dispenser Range King
Large (12000 balls)
=> weight empty approx 260 kg, full approx 850 kg
=> outer dimensions 92 x 124 x 155 cm (w x d x h)

Dispenser Range King
X-Large (16000 balls)
=> weight empty approx 290 kg, full approx 1.090 kg
=> outer dimensions 92 x 178 x 155 cm (w x d x h)
