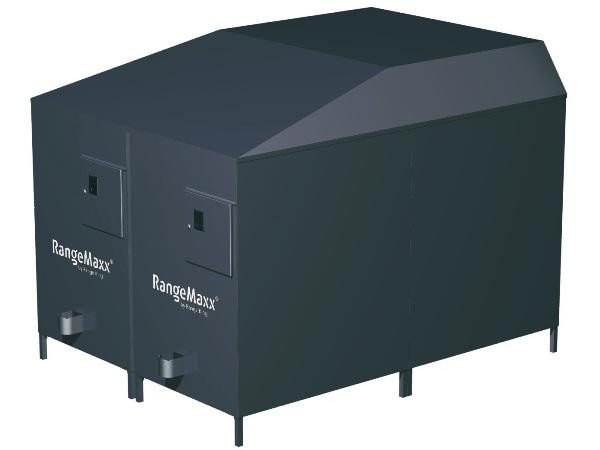

Range King Twin Ball Dispensers

Range King Twin Ball Dispensers

Range King golf ball dispensers are all equipped with the unique, reliable and sturdy dispensing mechanism, developed by Range King.The mechanism is quick and accurate: it dispenses in only one single movement an exact even quantity between 12 and 24 balls. This action takes less than 3 seconds!

• dispensing of the balls with two unique
• Range King dispensing mechanisms
• large storage capacity compared to compact dimensions
• integrated light-duty washing installations
• filled through the opening at the backside by Range King Elevators or Range King Turbo Blowing System
• counters included
• solid steel exterior, galvanized and powder coated
• stainless steel lock cams prevent burglary
• adjustable set feet
• holes on every side indicate the level of balls
• large front doors enable integration of many different
• payment systems (order separately)

Technical details:

• dispensing cycle:  2-3 seconds
• dispensing quantities per cycle:
• 1 row: 6,7,8,9,10, 11 or 12 balls
• 2 rows: 12,14,16,18,20,22 or 24 balls
• adjustable quantity of 1-4 cycles per payment
• power: 230 VAC/ power consumption: 5-200 W
• water inlet: 1/2″ (garden hose dimension)
• water drain: 40 mm
• standard color: RAL7015 grey
• other colors optionally possible

dispenser Range King
twin Medium (20000 balls)
=> weight empty approx 450 kg, full approx 1.750 kg
=> outer dimensions 185 x 125 x 165 cm (w x d x h)

Dispenser Range King
twin Large (26000 balls)
=> weight empty approx 450 kg, full approx 1.750 kg
=> outer dimensions 185 x 125 x 185 cm (w x d x h)

Dispenser Range King
twin X-Large (35000)
=> weight empty approx 500 kg, full approx 2.250 kg
=> outer dimensions 185 x 177 x 185 cm (w x d x h)

Dispenser Range King
twin XX-Large (51000)
=> weight empty approx 650 kg, full approx 3.150 kg
=> outer dimensions 185 x 250 x 185 cm (w x d x h)
